Scan Room Interface Module-3 Upgrade Kit 5121793
| 5121793 | |
| 2299497 5115910 | |
| Magnetic Resonance Imaging | |
| GE HealthCare | Exchange - Return Defective |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Field Replaceable Unit (FRU)
- Higher reliability and efficiency
- Easy to connect / disconnect
- Compact size
Product Overview

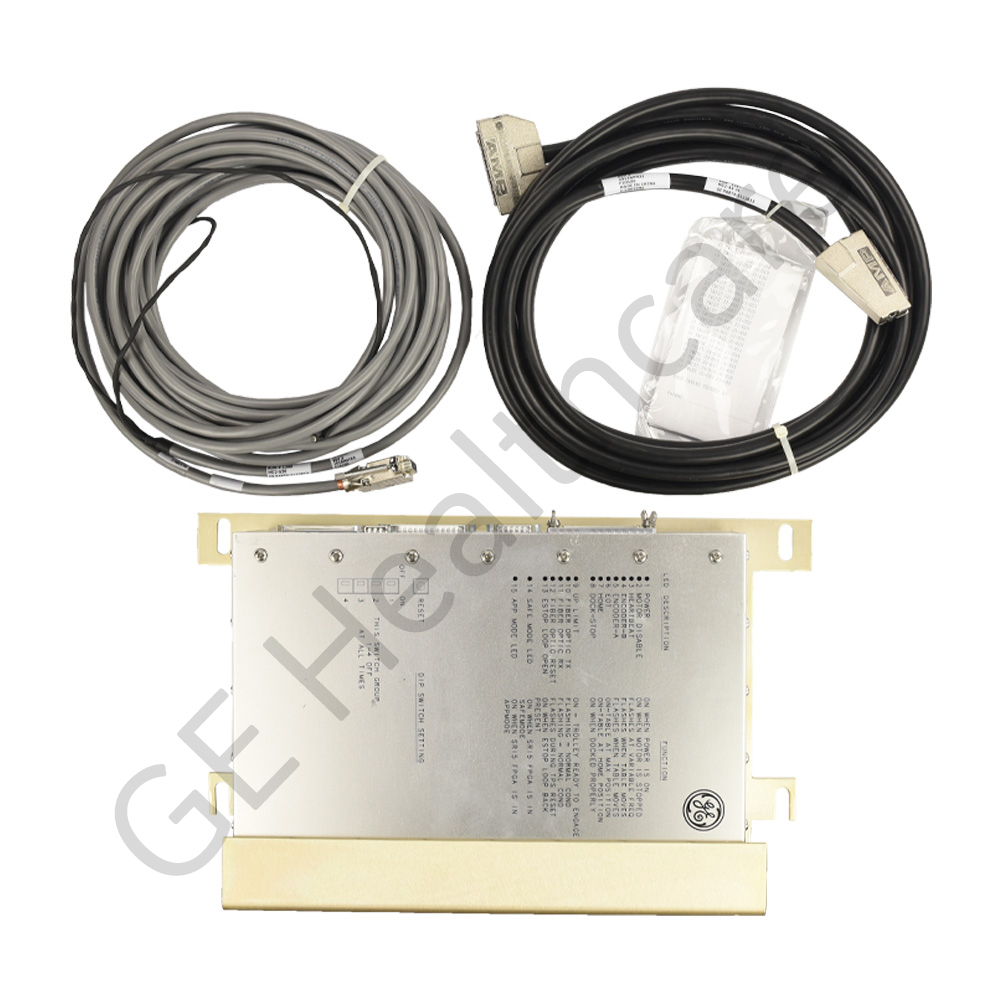

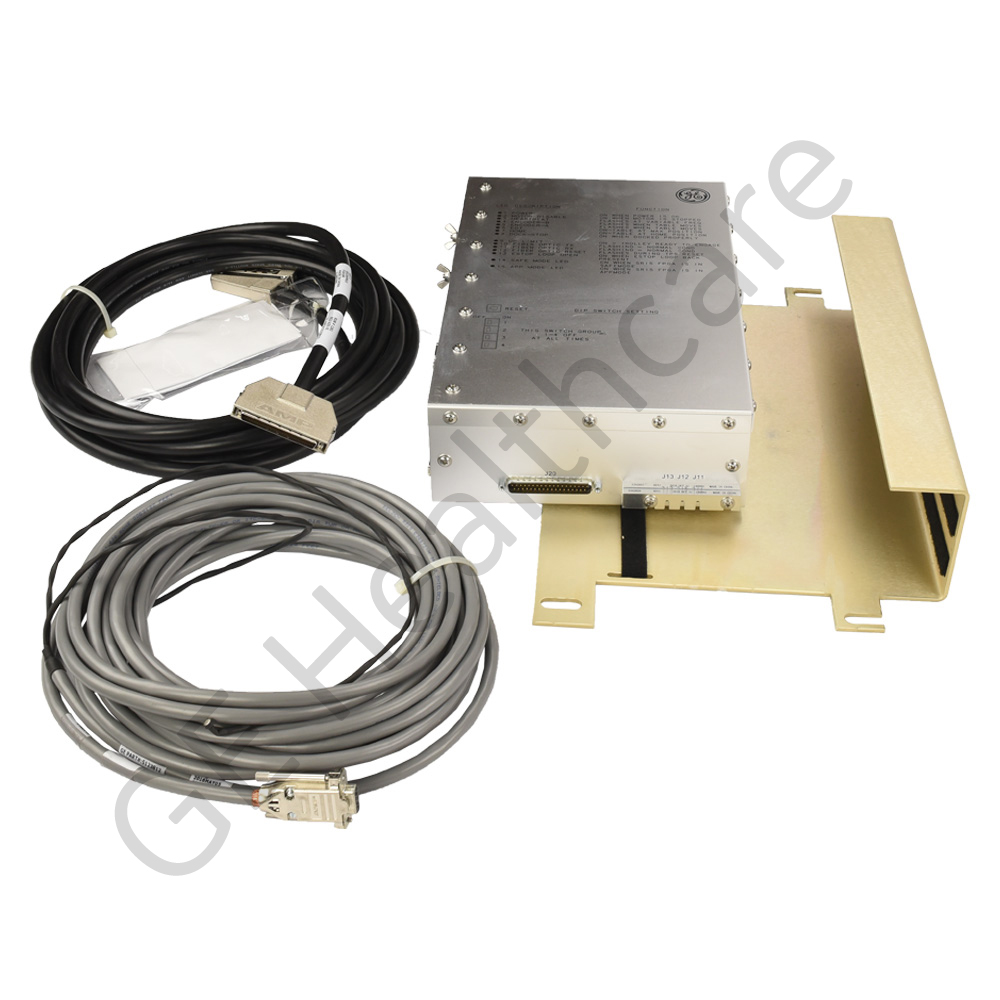

The Scan Room Interface (SRI) Module-3 Upgrade Kit consists of SRI-5 Assembly, a Operator Display Cable to SRI, a Bracket and a Bore Temperature Sensor Cable without ground pins. The SRI-5 is a component of the Patient Handling Sub-System which interfaces with other components such as Servo amplifier in PHPS (Patient Handling Power Supply), the Operator Display Panel, Operator Control Panel, Dock Assembly and other Magnet Peripherals. The SRI-5 communicates over Fiber Optic interface to the Scan Control Processor (SCP) located on the system cabinet, and it is powered by the PHPS. The operator display cable is for interfacing SRI board with operator display, the bracket is for mounting and bore temperature sensor cable is for connecting the temperature sensor with the SRI board
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 2299497 |
|
| 5115910 |
